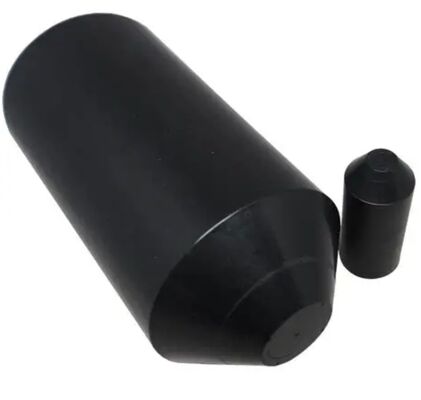

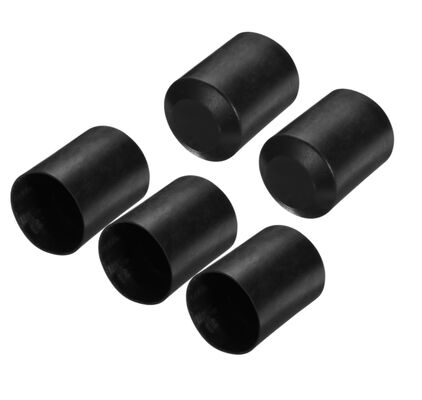

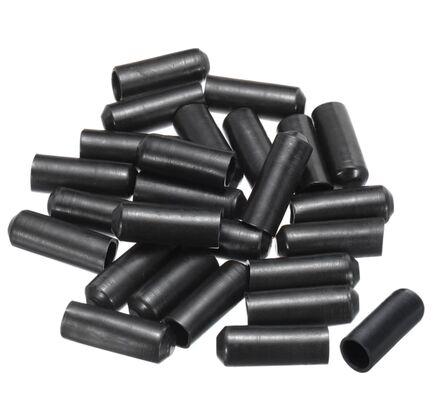

Semi-rigid Heat Shrinking Caps Adhesive Lined Under Extreme Operating Condition

브랜드 이름:	LC
모델 번호:	3.2~25.4mm
모크:	120
가격:	negotiable
지불 조건:	TT In Advance
공급 능력:	100000m/day

자세한 정보

제품 설명

자세한 정보

인증:

ISO9001

높은 저항력:

일반적인 자동차 유체 및 용제

연장:

400%

주로 사용됨:

PILC 케이블 종단 및 조인트

외층:

열수축성 폴리올레핀

제공:

내유성 절연

최소 수축 온도:

수축:

낮은 종방향 수축

온도:

-45-125

포장 세부 사항:

판지 상자

Supply Ability:

100000m/day

강조하다:

adhesive lined heat shrink caps

semi-rigid heat shrink tubing

dual wall heat shrink tubes

제품 설명

Product Description:

The dual wall heat shrink cap is a heat-shrinkable product with a pre-sealed single end and a double-layer structure, specially designed for the insulation, sealing and protection of wire and cable terminations. It is widely used in electrical, power, automotive, photovoltaic and marine industries for its excellent sealing, insulation and mechanical performance.

1. Structure & Working Principle

Double-layer core structure

Outer layer: Radiation-crosslinked polyolefin, featuring high mechanical strength, good insulation, flame retardancy, UV resistance and chemical corrosion resistance, which provides the main structural protection for cable terminations.
Inner layer: Hot melt adhesive (EVA or Polyamide PA as the main raw material), with strong adhesion to metals, plastics and rubber materials.
Pre-sealed end: One end is pre-shrunk and sealed during production, avoiding moisture and impurity intrusion from the end after installation.

Features:

Product Name: Dual Wall Heat Shrink Caps
Highly resistant to common automotive fluids and solvents
Offers excellent oil resistance insulation
Low longitudinal shrinkage for precise fitting
Shrink ratio of 4:1 for versatile applications
Halogen free for environmentally friendly use
Ideal for use as double wall heat shrink protection
Reliable dual wall shrink tubing for enhanced durability
Contains dual wall adhesive heat shrink tubing for superior sealing

Technical Parameters:

Mainly Used In	PILC Cable Terminations
Compliant	RoHS Compliant
Min Shrink Temperature (°C)	70
Halogen Free	Halogen Free
Highly Resistance To	Common Automotive Fluids And Solvents
Offering	Oil Resistance Insulation
Packing	Roll
Shrinkage	Low Longitudinal Shrinkage
Temperature Range (°C)	-45 to 125
Elongation	400%

Applications:

Power & Telecommunications: Sealing protection of cable terminations during laying, storage and maintenance; insulation and moisture-proof of overhead lines, underground cable terminals and distribution cabinet internal wiring.
Automotive & Rail Transit: Waterproof and oil-proof sealing of wire harness terminals, battery connectors, sensor wire ends and automotive high-voltage wire terminations.
Electrical Equipment Manufacturing: Insulation and sealing of motor lead-out wires, transformer terminals, generator wiring ends and switchgear internal conductors.
Renewable Energy & Outdoor Engineering: UV and salt spray resistant protection of photovoltaic cable terminals, wind power tower internal cables and street lamp wiring ends.
Marine & Offshore Engineering: Corrosion and water-proof sealing of shipboard cables and offshore platform wiring (resistant to seawater erosion and high humidity).
