제품 세부 정보

집 상품

High Temperature Resistance PTFE Tube with Chemical Resistance and Self-Extinguishing Properties for Electronic Use

브랜드 이름:	None
모델 번호:	10mm
모크:	1
가격:	negotiable
지불 조건:	L/C,D/A,D/P,T/T,웨스턴 유니온
공급 능력:	10000미터 일

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국 장수성

인증:

ISO9001

온도 저항:

-65~260C

가연성:

UL,폭스바겐-1

격리:

높은

내화학성:

산성 알칼리 저항성

색상:

검정, 빨강, 노랑, 흰색, 파랑, 분홍색, 보라색

내마모성:

0.05~0.10

소화 능력:

자기 소화

전기:

높은 전기 저항

포장 세부 사항:

판지 상자

공급 능력:

10000미터 일

강조하다:

High temperature resistance PTFE tube

Chemical resistant PTFE tubing

Self-extinguishing PTFE tube electronics

제품 설명

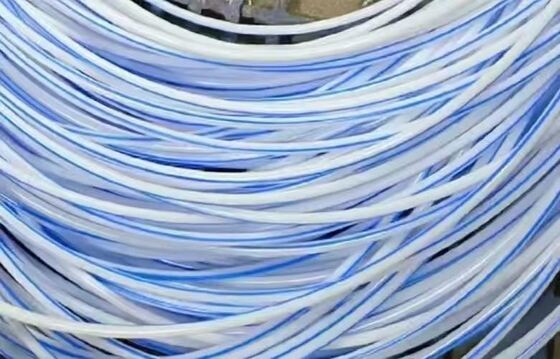

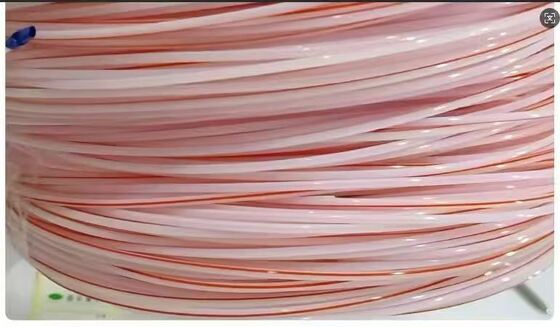

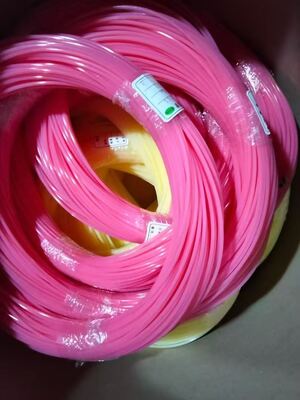

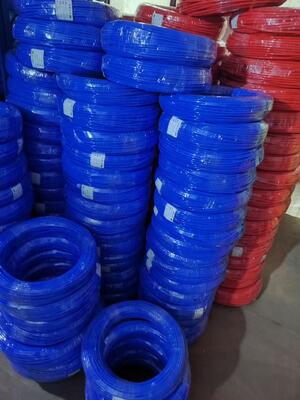

PTFE Non-Shrink Tubing

PTFE (Polytetrafluoroethylene) non-shrink tubing, also known as Teflon tubing, is a semi-rigid tube manufactured by extruding and sintering PTFE resin. It is non-heat-shrinkable (shrink temperature ≥ 320°C), maintaining stable dimensions under normal operating conditions.

Key Features

Temperature Range: -200°C to +260°C (continuous use)
Chemical Resistance: Resistant to almost all acids, alkalis, solvents, oxidizers (except fluorine, molten alkali metals)
Electrical Properties: High dielectric strength (≥55kV/mm), low dielectric constant (2.1), high volume resistivity (10¹⁸Ω·cm)
Low Friction: Lowest coefficient of friction among solids (≤0.04), non-stick, easy to clean
Mechanical: High strength, wear-resistant, creep-resistant, aging-resistant
Certifications: RoHS, REACH, FDA food contact compliant
Flammability: UL94 V-0 (self-extinguishing)

Specifications

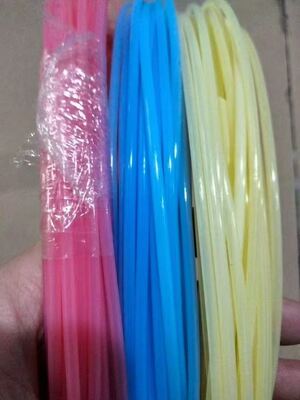

Color: Natural translucent white, custom colors available
Voltage Ratings: 150V / 300V / 600V
Wall Thickness: Standard, thin, heavy
Sizes: Inner diameter 0.3mm ~ 20mm, custom available

Applications

Electronics: High-temperature wire harness, motor, transformer insulation
Chemical/Semiconductor: Corrosive fluid, high-purity chemical, specialty gas transport
Medical: Catheters, infusion tubes, steam sterilization lines
New Energy: EV battery coolant, high-voltage wire insulation
Aerospace: Extreme temperature, corrosion-resistant tubing
Food/Pharma: FDA-approved food transfer, sterilization line
